Aire::Buffer Class Reference

#include <buffer.h>

Public Member Functions
	Buffer (GLsizeiptr bufferSize, const void *data, GLbitfield flags=GL_DYNAMIC_STORAGE_BIT)
void	setData (GLintptr offset, GLsizeiptr dataSize, const void *data)
void	bindUniform (GLuint index, GLintptr offset, GLsizeiptr size)
void	bindShaderStorage (GLuint index, GLintptr offset, GLsizeiptr size)
void	bindTransformFeedback (GLuint index, GLintptr offset, GLsizeiptr size)
void	bindAtomicCounter (GLuint index, GLintptr offset, GLsizeiptr size)
void	bindVertAttrib (const VertexArrayObject &vao, GLuint bindingPoint, GLintptr offset, GLsizei stride)
void	bindElementBuffer (const VertexArrayObject &vao)
GLuint	getHandle () const
GLint64	getSize () const
	~Buffer ()
	Destructor frees the associated OpenGL memory automatically.
	Buffer (const Buffer &)=delete
Buffer &	operator= (const Buffer &)=delete

Detailed Description

A wrapper over an OpenGL buffer. Used to simplify buffer setup and to provide automatic clean-up.

Constructor & Destructor Documentation

Buffer()

Buffer::Buffer	(	GLsizeiptr	bufferSize,
		const void *	data,
		GLbitfield	flags = GL_DYNAMIC_STORAGE_BIT )

Create and initialize an OpenGL buffer. See: https://registry.khronos.org/OpenGL-Refpages/gl4/html/glBufferStorage.xhtml

Parameters

bufferSize	The size of the buffer to be allocated. Cannot be changed later.
data	A pointer to the data to be copied to the buffer. nullptr if data is not available yet.
flags	Flags used for buffer creation. Default one is GL_DYNAMIC_STORAGE_BIT.

Member Function Documentation

bindAtomicCounter()

void Aire::Buffer::bindAtomicCounter ( GLuint index, GLintptr offset, GLsizeiptr size )

inline

Bind the buffer to an atomic counter binding point.

Parameters

index	The uniform binding point to bind to.
offset	Offset within the buffer where the memory to be bound begins (in case only a subset of the buffer will be bound).
size	Size of the memory block to be bound (in bytes).

bindElementBuffer()

void Buffer::bindElementBuffer

(

const VertexArrayObject &

vao

)

Bind the buffer as an element buffer holding faces that index into the vertex array.

Parameters

vao	The vertex array object.

Here is the caller graph for this function:

bindShaderStorage()

void Aire::Buffer::bindShaderStorage ( GLuint index, GLintptr offset, GLsizeiptr size )

inline

Bind the buffer to a shader storage binding point.

Parameters

index	The shader storage binding point to bind to.
offset	Offset within the buffer where the memory to be bound begins (in case only a subset of the buffer will be bound).
size	Size of the memory block to be bound (in bytes).

bindTransformFeedback()

void Aire::Buffer::bindTransformFeedback ( GLuint index, GLintptr offset, GLsizeiptr size )

inline

Bind the buffer to a transform feedback binding point.

Parameters

index	The transform feedback binding point to bind to.
offset	Offset within the buffer where the memory to be bound begins (in case only a subset of the buffer will be bound).
size	Size of the memory block to be bound (in bytes).

bindUniform()

void Buffer::bindUniform	(	GLuint	index,
		GLintptr	offset,
		GLsizeiptr	size )

Bind the buffer to a uniform binding point.

Parameters

index	The uniform binding point to bind to.
offset	Offset within the buffer where the memory to be bound begins (in case only a subset of the buffer will be bound). The offset must be a multiple of GL_UNIFORM_BUFFER_OFFSET_ALIGNMENT, which on most platforms is 256.
size	Size of the memory block to be bound (in bytes).

bindVertAttrib()

void Buffer::bindVertAttrib	(	const VertexArrayObject &	vao,
		GLuint	bindingPoint,
		GLintptr	offset,
		GLsizei	stride )

Bind the buffer to a vertex attribute binding point.

Parameters

vao	The vertex array object holding attribute specification.
bindingPoint	The binding point of the attribute. We often set it to simply be the same as the attribute index.
offset	Offset within the buffer where the attribute memory begins.
stride	Number of bytes from the start where the next attribute is stored. Allows interleaved attributes.

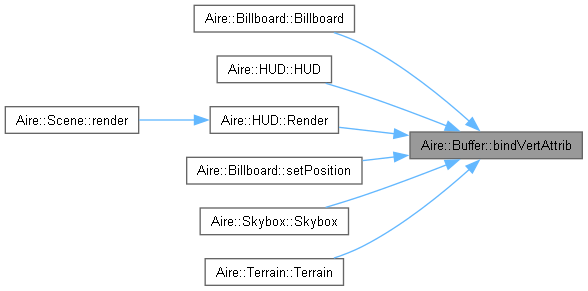

Here is the caller graph for this function:

getHandle()

GLuint Aire::Buffer::getHandle ( ) const

inline

Returns

The internal OpenGL handle to the buffer.

getSize()

GLint64 Buffer::getSize

(

)

const

Returns

The size of the buffer in bytes.

Here is the caller graph for this function:

setData()

void Buffer::setData	(	GLintptr	offset,
		GLsizeiptr	dataSize,
		const void *	data )

Set data for (a part of) the buffer.

Parameters

offset	The offset in the buffer to the first element that should be written over.
dataSize	The number of bytes to be written over.
data	A pointer to the data.

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• source/rendering/buffer.h
• source/rendering/buffer.cpp
