Aire::Terrain Class Reference

A class that represents a terrain object. More...

#include <terrain.h>

Public Member Functions
	Terrain (TexturePtr heightMap, int numVertices=200, const float xzScale=50.f, const float yScale=10.f, TexturePtr diffuseMap=nullptr, TexturePtr normalMap=nullptr, TexturePtr roughnessmap=nullptr)
	Constructs a Terrain object with specified parameters.
	~Terrain ()
	Destructor for the Terrain object.
bool	saveHeightData ()
	Loads the height data from the height map texture.
float	getHeightAt (const float x, const float z)
	Retrieves the height of the terrain at a given point in world space.
float	getXZScale () const
	Gets the terrain scale factor in the x and z axes.
float	getYScale () const
	Gets the terrain scale factor in the y axis.
void	render (ShaderProgram &prog, Aire::Camera &camera)
	Renders the terrain using a specified shader program and camera.
void	addWaterSurface (TextureManager *texManager, const Box2D &region, float height)
	Adds a water surface to the terrain.

Public Attributes
std::vector< glm::vec3 >	vertices
std::vector< glm::vec2 >	uvs
std::vector< unsigned int >	indices
glm::mat4	modelMatrix = glm::mat4(1.0f)
TexturePtr	heightMap = nullptr
TexturePtr	diffuseMap = nullptr
TexturePtr	specularMap = nullptr
TexturePtr	normalMap = nullptr
TexturePtr	roughnessMap = nullptr
glm::vec3	diffuseColor = glm::vec3(0.f, 0.1f, 0.f)
glm::vec3	specularColor = glm::vec3(0.05f, 0.05f, 0.05f)
float	shininessValue = 1.f
std::vector< Aire::WaterSurface * >	waterSurfaces

Detailed Description

A class that represents a terrain object.

Constructor & Destructor Documentation

Terrain()

Terrain::Terrain	(	Aire::TexturePtr	heightmap,
		int	numVertices = 200,
		const float	xzScale = 50.f,
		const float	yScale = 10.f,
		Aire::TexturePtr	diffuseMap = nullptr,
		Aire::TexturePtr	normalMap = nullptr,
		Aire::TexturePtr	roughnessMap = nullptr )

Constructs a Terrain object with specified parameters.

Parameters

heightMap	The height map texture to use for the terrain.
numVertices	The number of vertices along one side of the terrain.
xzScale	The scale of the terrain in the x and z axes.
yScale	The scale of the terrain in the y axis.
diffuseMap	Optional diffuse map texture (nullptr for no texture).
normalMap	Optional normal map texture (nullptr for no texture).
roughnessMap	Optional roughness map texture (nullptr for no texture).

Here is the call graph for this function:

Member Function Documentation

addWaterSurface()

void Terrain::addWaterSurface	(	TextureManager *	texManager,
		const Box2D &	region,
		float	height )

Adds a water surface to the terrain.

Parameters

texManager	The texture manager for loading water textures.
region	The region of the terrain to add the water surface to.
height	The height of the water surface.

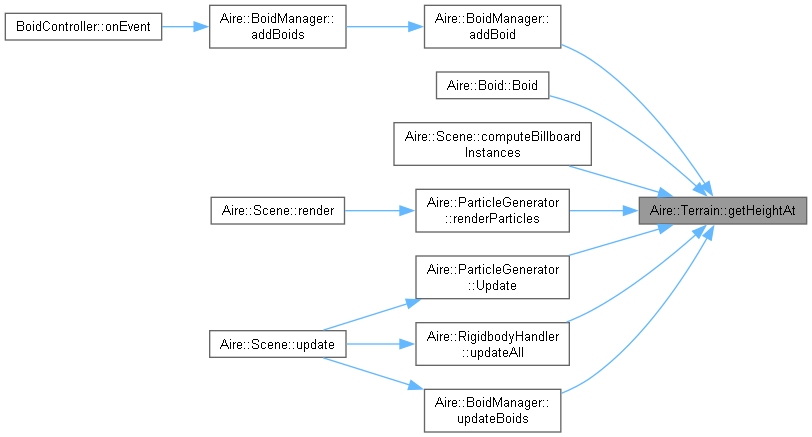

Here is the caller graph for this function:

getHeightAt()

float Terrain::getHeightAt	(	const float	x,
		const float	z )

Retrieves the height of the terrain at a given point in world space.

Parameters

x	The x coordinate of the point.
z	The z coordinate of the point.

Returns

The world coordinates height of the terrain at the given point.

Here is the caller graph for this function:

getXZScale()

float Aire::Terrain::getXZScale ( ) const

inline

Gets the terrain scale factor in the x and z axes.

Returns

The scale factor applied to the x and z dimensions of the terrain.

Here is the caller graph for this function:

getYScale()

float Aire::Terrain::getYScale ( ) const

inline

Gets the terrain scale factor in the y axis.

Returns

The scale factor applied to the y dimension of the terrain.

Here is the caller graph for this function:

render()

void Terrain::render	(	ShaderProgram &	prog,
		Aire::Camera &	camera )

Renders the terrain using a specified shader program and camera.

Parameters

prog	The shader program used for rendering.
camera	The camera object used for view and projection matrices.

Here is the call graph for this function:

saveHeightData()

bool Terrain::saveHeightData

(

)

Loads the height data from the height map texture.

Returns

True if the height data was loaded successfully, false otherwise.

Here is the caller graph for this function:

Member Data Documentation

diffuseColor

glm::vec3 Aire::Terrain::diffuseColor = glm::vec3(0.f, 0.1f, 0.f)

Diffuse color of the terrain material.

diffuseMap

TexturePtr Aire::Terrain::diffuseMap = nullptr

Pointer to the diffuse map texture.

heightMap

TexturePtr Aire::Terrain::heightMap = nullptr

Pointer to the height map texture.

indices

std::vector<unsigned int> Aire::Terrain::indices

Indices defining the rendering order of vertices.

modelMatrix

glm::mat4 Aire::Terrain::modelMatrix = glm::mat4(1.0f)

Model matrix of the terrain.

normalMap

TexturePtr Aire::Terrain::normalMap = nullptr

Pointer to the normal map texture.

roughnessMap

TexturePtr Aire::Terrain::roughnessMap = nullptr

Pointer to the roughness map texture.

shininessValue

float Aire::Terrain::shininessValue = 1.f

Shininess value of the terrain material.

specularColor

glm::vec3 Aire::Terrain::specularColor = glm::vec3(0.05f, 0.05f, 0.05f)

Specular color of the terrain material.

specularMap

TexturePtr Aire::Terrain::specularMap = nullptr

Pointer to the specular map texture.

uvs

std::vector<glm::vec2> Aire::Terrain::uvs

Texture coordinates corresponding to the vertices.

vertices

std::vector<glm::vec3> Aire::Terrain::vertices

List of vertices defining the terrain geometry.

waterSurfaces

std::vector<Aire::WaterSurface*> Aire::Terrain::waterSurfaces

List of water surfaces associated with the terrain.

---

The documentation for this class was generated from the following files:

• source/res-management/terrain.h
• source/res-management/terrain.cpp
